3D Printer parts A4988/8825 External stepper motor driver board panel additional adapter Extended Interface good for MKS GEN

Name: 3D Printer A4988/8825 Extended Board





Product Introduction:

1.When use A4988/DRV8825/MKS TMC 2100 , it needs to take care of its direction, otherwise, the driver will be burned easily.

2.Move the wire jumper to ON DP that  means 16 microstep  (4988)or  32 microstep  (8825)

3.Jm connects  with motor.

4. Jv connects  with 5V and 12V-24V power .

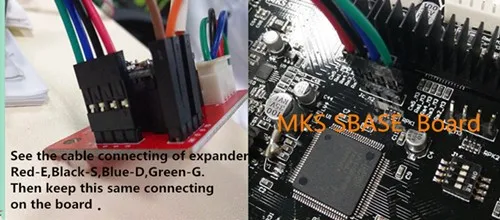

5.E\S\D\G of Jc respectively connecte  to the driver signal output of     Enable\Step\Dir\Gnd.

6.Megatronics and Our MKS-Gen allows you to connect an external stepper driver for alls axis.

7.Minitronicsand Our MKS-Gen allows a fifth stepper driver. Using this board you can take advantage of that feature.

8.You can hook up multiple external stepper drivers in series, which allow you to run as many stepper drivers on one axis as you need.

9.Easily use with MKS GEN,MKS BASE2,and MKS SBASE,etc.

Below website is more info about MKS SBASE with this  adapter .

instructables.com/id/Setup-External-Driver-on-Smoothieware-Sbase-12-Con/
