3D reprap thermal printer bed / print head heating control of MOS with line

Description

Product Name: reprap / bed thermal print head heating control MOS MKS MOS pipe line
Weight: 20g
Advantage:
1, each of which will do the function test.
2, especially with a 3Pin 70cm connection, convenient connection to use MKS MINI.
3, the maximum current can be up to 12A
Shipping list: *1, 3Pin control panel module signal line anti-static bag package
Technical support and guarantee:
Do the power test before delivery, which can be used to ship.

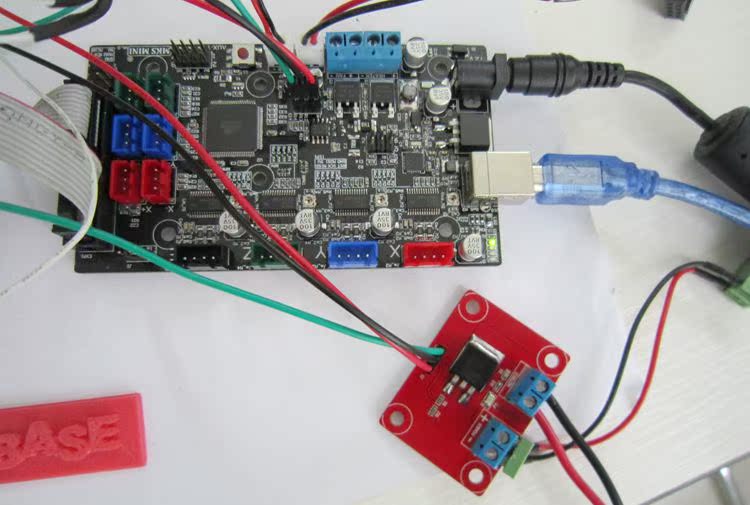

The use of the MINI method in MKS:

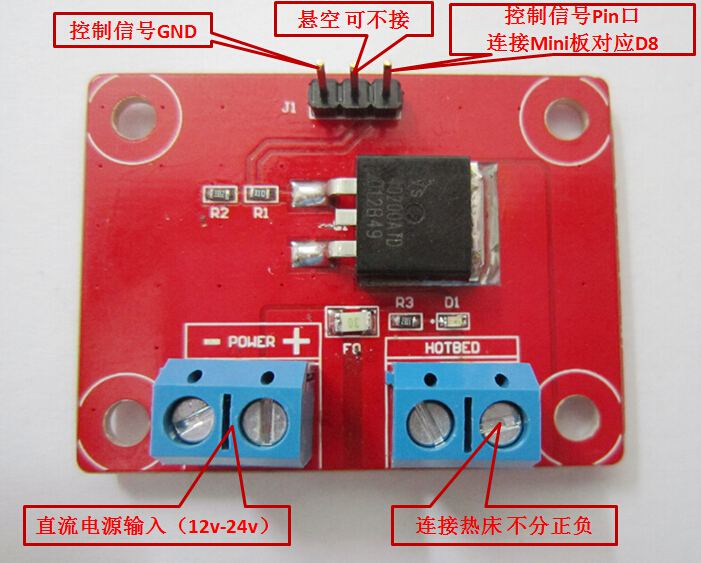

1, Power is connected with the power supply, attention to negative.
2, Hotbed connection hot bed heating line, regardless of positive and negative.
3, the control signal close to the J1 pin Gnd, can not meet in the middle, leaving a hot bed connection pin switch, if the connection is MKS MINI, you can use the 3Pin line directly connected to the corresponding position of MKS on MINI.
