Pixhawk Autopilot


sold: 0



Key Features

  • 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
  • Abundant connectivity options for additional peripherals (UART, I2C, CAN)
  • Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
  • Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
  • Redundant power supply inputs and automatic failover
  • External safety switch
  • Multicolor LED main visual indicator
  • High-power, multi-tone piezo audio indicator
  • microSD card for high-rate logging over extended periods of time

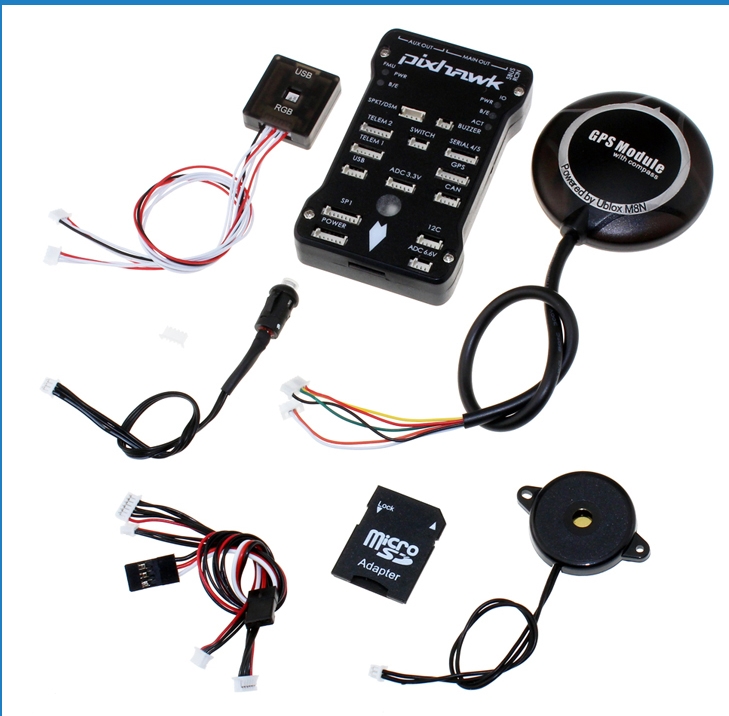

    Included parts with Pixhawk:


    Safety switch button

    3DR power module with XT60 connectors and 6-position connector cable

    Extra 6-position cable to connect a jDrones GPS+Compass module

    Micro USB cable

    SD card and USB adapter

    Mounting foam

    3-wire servo cable


    32bit STM32F427 Cortex M4 core with FPU

    168 MHz

    256 KB RAM

    2 MB Flash

    32 bit STM32F103 failsafe co-processor

    ST Micro L3GD20H 16 bit gyroscope

    ST Micro LSM303D 14 bit accelerometer / magnetometer

    MEAS MS5611 barometer


    5x UART (serial ports), one high-power capable, 2x with HW flow control


    Spektrum DSM / DSM2 / DSM-X Satellite compatible input

    Futaba S.BUS® compatible input and output

    PPM sum signal

    RSSI (PWM or voltage) input



    3.3 and 6.6V ADC inputs

    External micro USB port

    Power System and Protection

    Ideal diode controller with automatic failover

    Servo rail high-power (7V) and high-current ready

    All peripheral outputs over-current protected, all inputs ESD protected

    Monitoring of system and servo rails, over current status monitoring of peripherals


    Weight: 38g

    Width: 50mm

    Thickness: 15.5mm

    Length: 81.5mm
